APC SMC1500IC

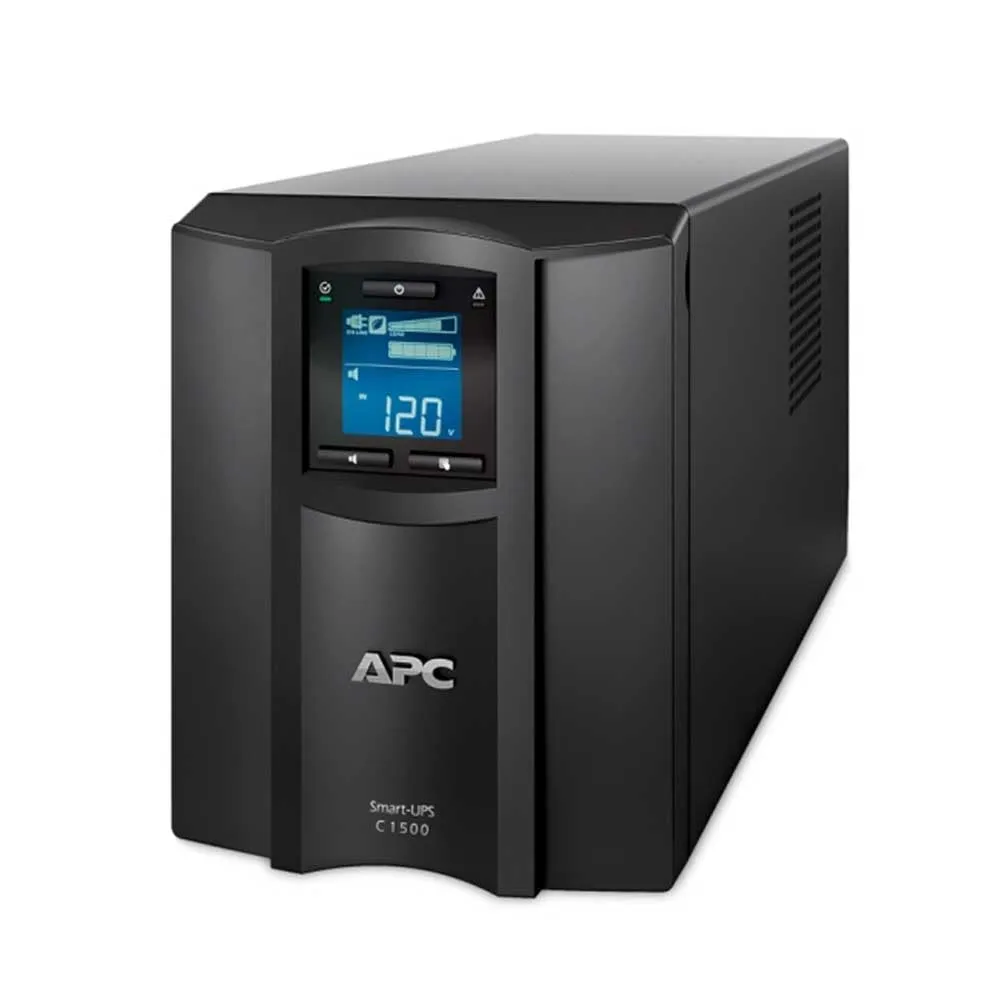

APC Smart-UPS C 1500VA LCD 230V with SmartConnect

Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.

Output

Output power capacity: 900Watts / 1.5 kVA
Max Configurable Power (Watts): 900Watts / 1.5 kVA
Nominal Output Voltage: 230V
Output Voltage Distortion: Less than 5%
Output Frequency (sync to mains): 50/60Hz /- 3 Hz
Other Output Voltages: 220, 240
Topology: Line Interactive
Waveform type: Sine wave
Output Connections: 8x IEC 320 C13 (Battery Backup), 2x IEC Jumpers (Battery Backup)
Transfer Time: 6ms typical : 10ms maximum

Input

Nominal Input Voltage: 230V
Input frequency: 50/60 Hz /- 3 Hz (auto sensing)
Input Connections: IEC-320 C14
Input voltage range for main operations: 180 - 287V
Input voltage adjustable range for mains operation: 170 - 300V
Other Input Voltages: 220, 240

Batteries & Runtime

Battery type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time: 3hour(s)
Replacement Battery: RBC6
Expected Battery Life (years): 3 - 5
RBC Quantity: 1

Communications & Management

Interface Port(s): USB
Control panel: Multi-function LCD status and control console
Audible Alarm: Alarm when on battery : distinctive low battery alarm : configurable delays
