Product Details
＋

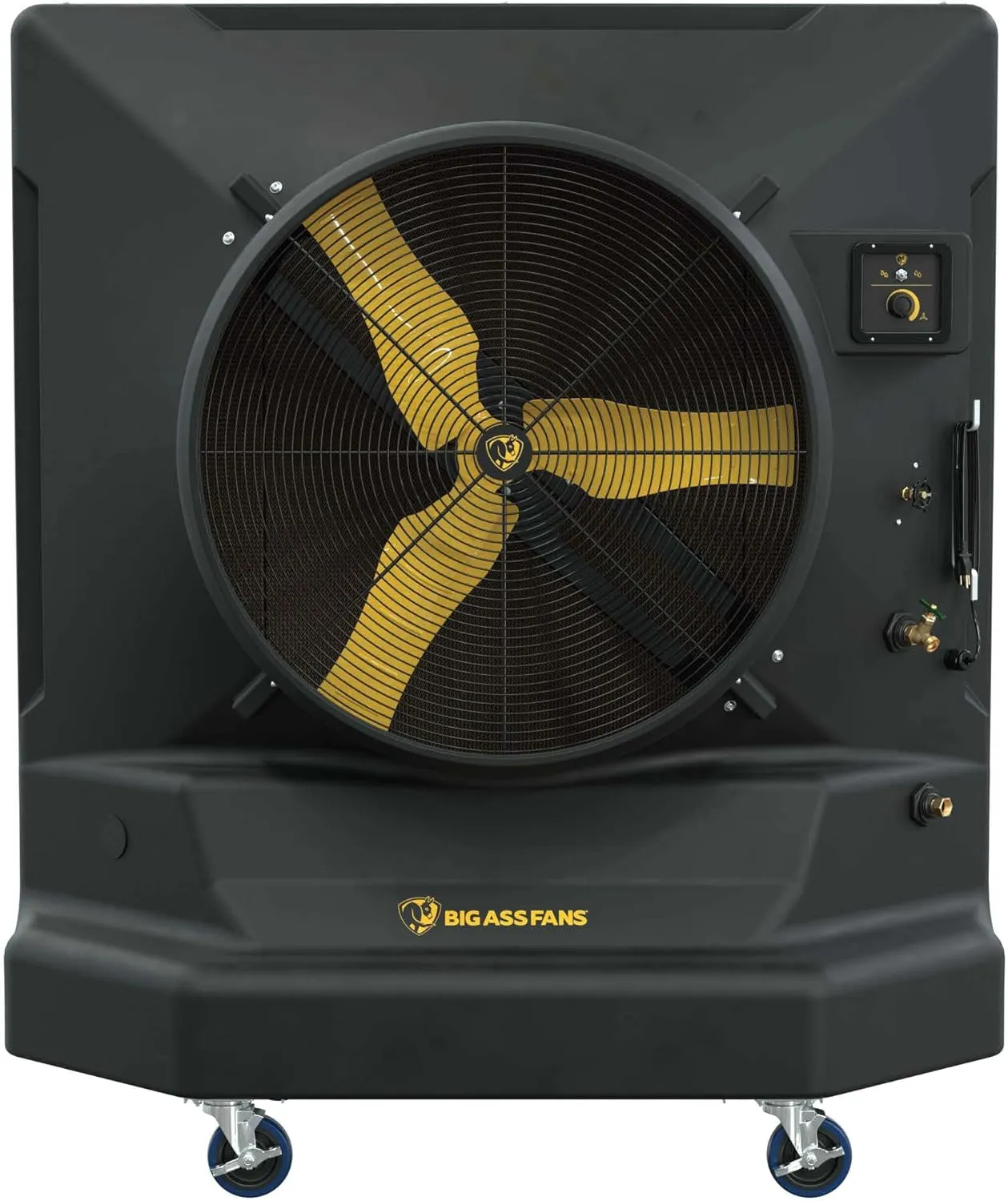

Big Ass Fans Cool Space 400 Evaporative Cooler - 36 Inch Diameter

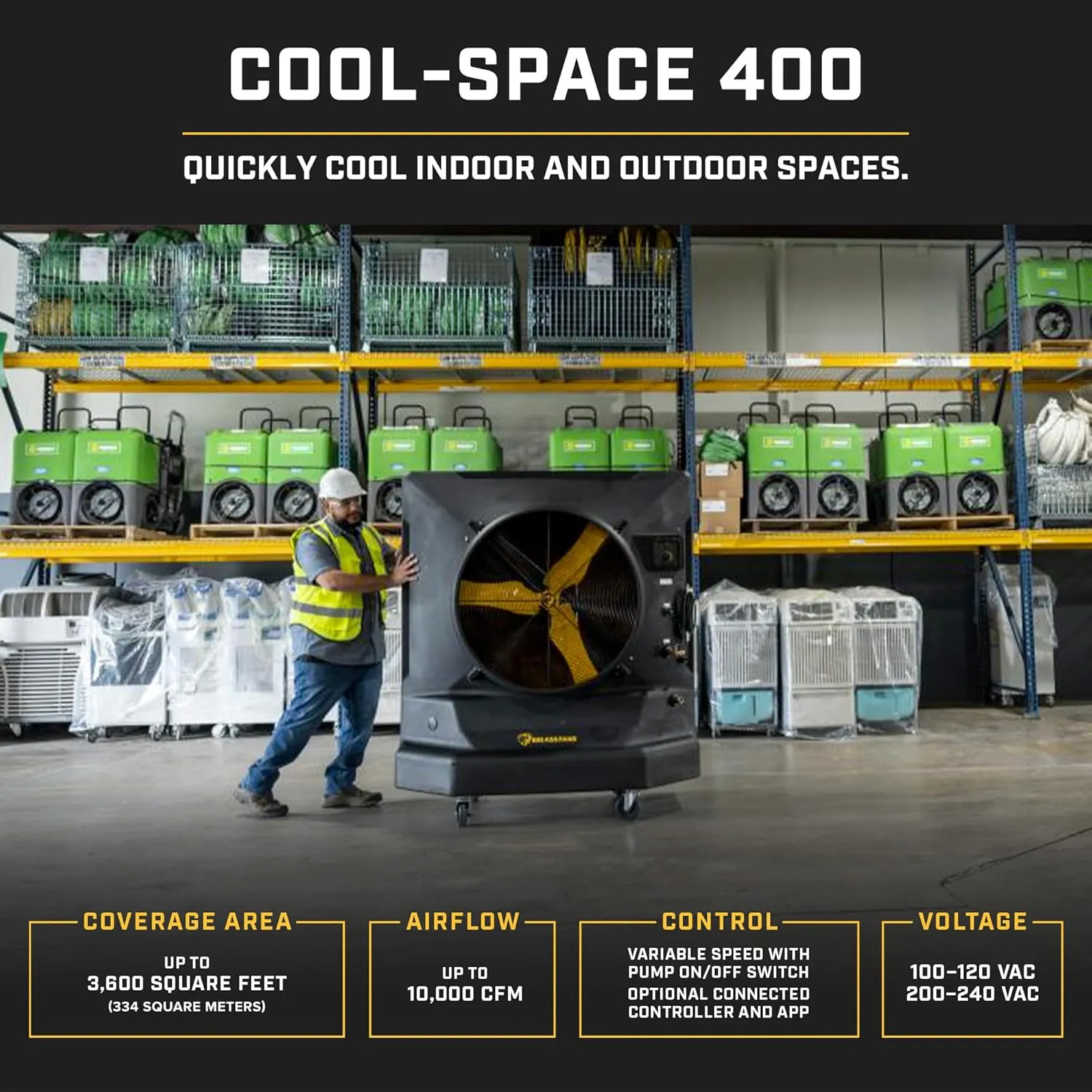

A swamp cooler with more swagger! Armed with a re-designed motor and new aerodynamic fan blades, Cool-Space 400 delivers more efficient, nearly silent airflow for up to 10 hours in spaces up to 3600 square feet. Now available with an All-Terrain package, Cool-Space 400 is the most durable, powerful, and portable evaporative cooler on the planet!
Key Features:
- Quickly cools indoor and (covered) outdoor spaces up to 33° F (18° C)
- Re-designed motor and new aerodynamic fan blades

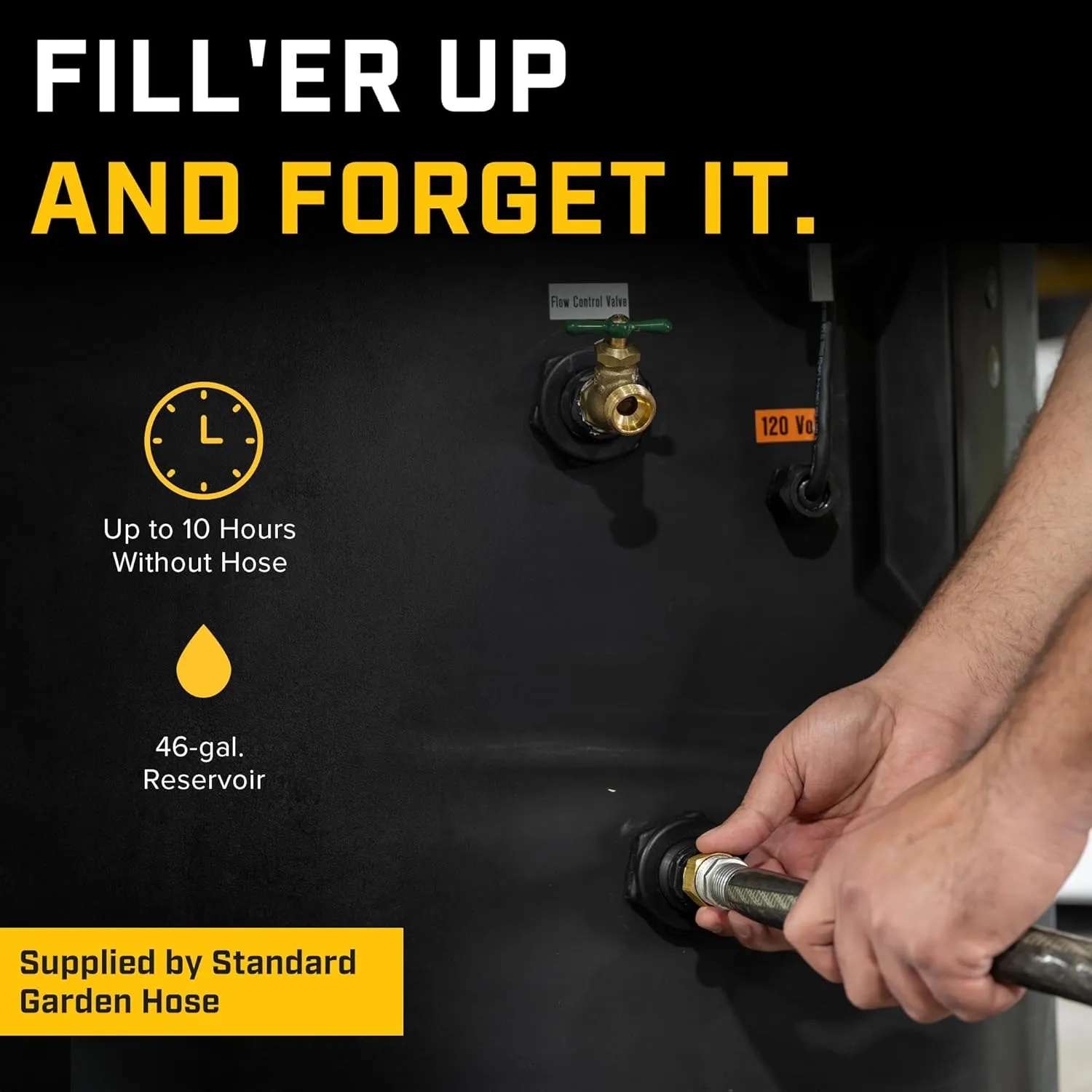

- 46-gallon reservoir provides up to 10 hours of hose-free operation
- 3600 square feet of coverage
- Optional All-Terrain package includes off-road tires and push/pull bar for added portability
- Thicker, resin-treated cooling media for more efficient performance

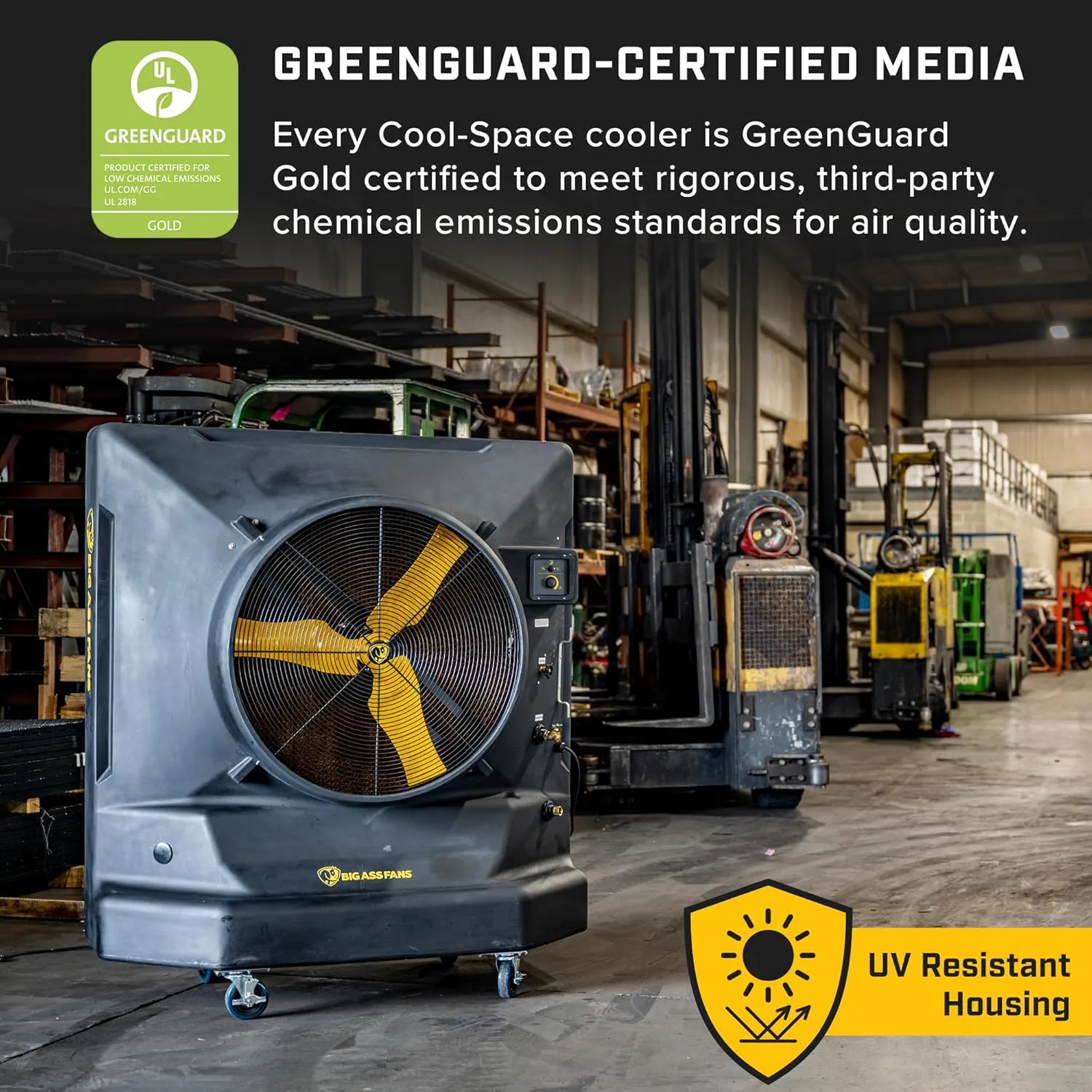

- Durable protectant exterior and stainless steel media cover for improved life-span in industrial environments/the most extreme environments
- Industry-leading 5 year warranty
Highlights:

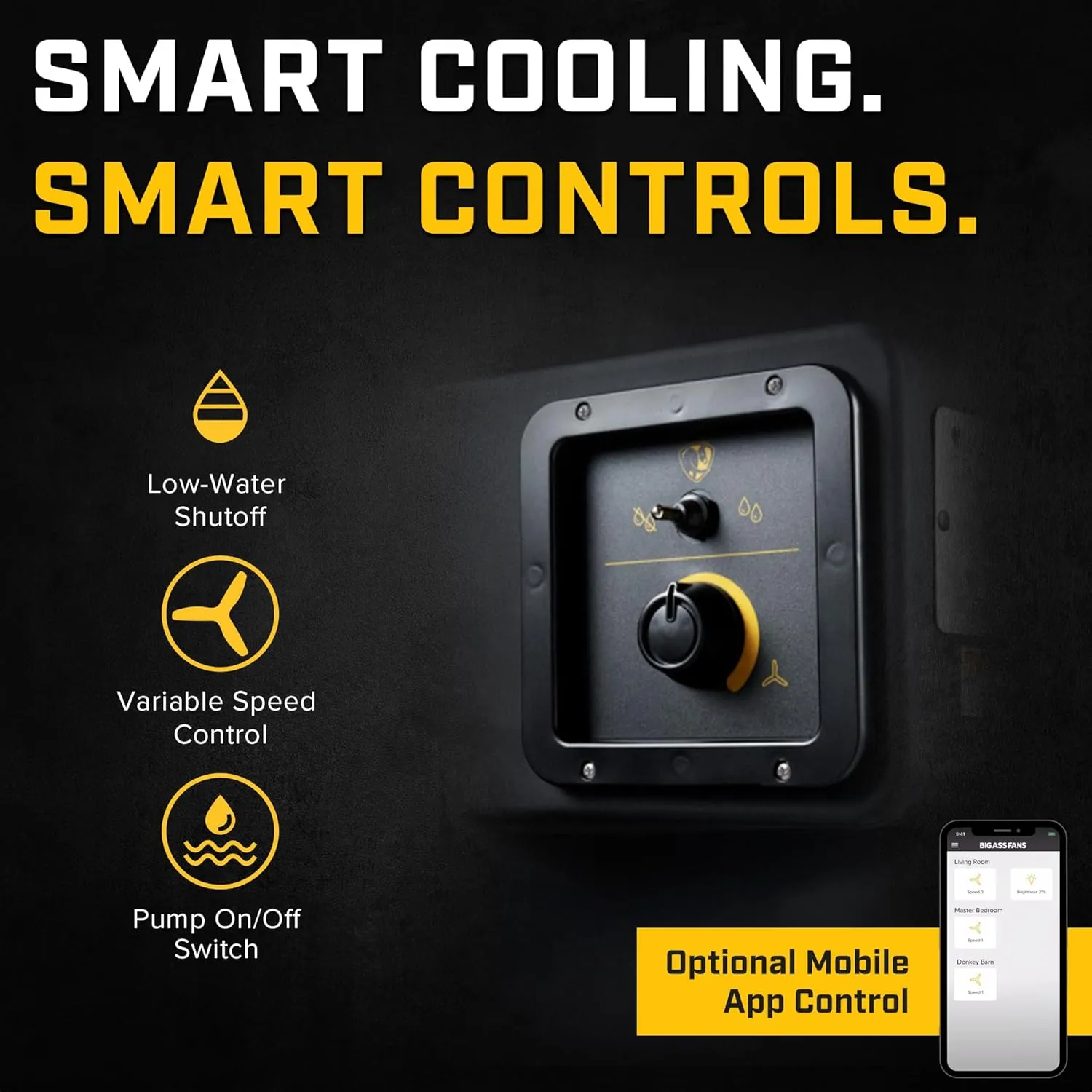

- Easy, Intuitive Controls: Get the precise level of cooling airflow you need with Cool-Space 400’s variable speed dial. And for those times where you only want the built-in fan, the pump is equipped with an on/off switch for easy transition between modes. Add on the Wi-Fi-enabled deluxe controller for mobile app control and Kick Ass™ mode.

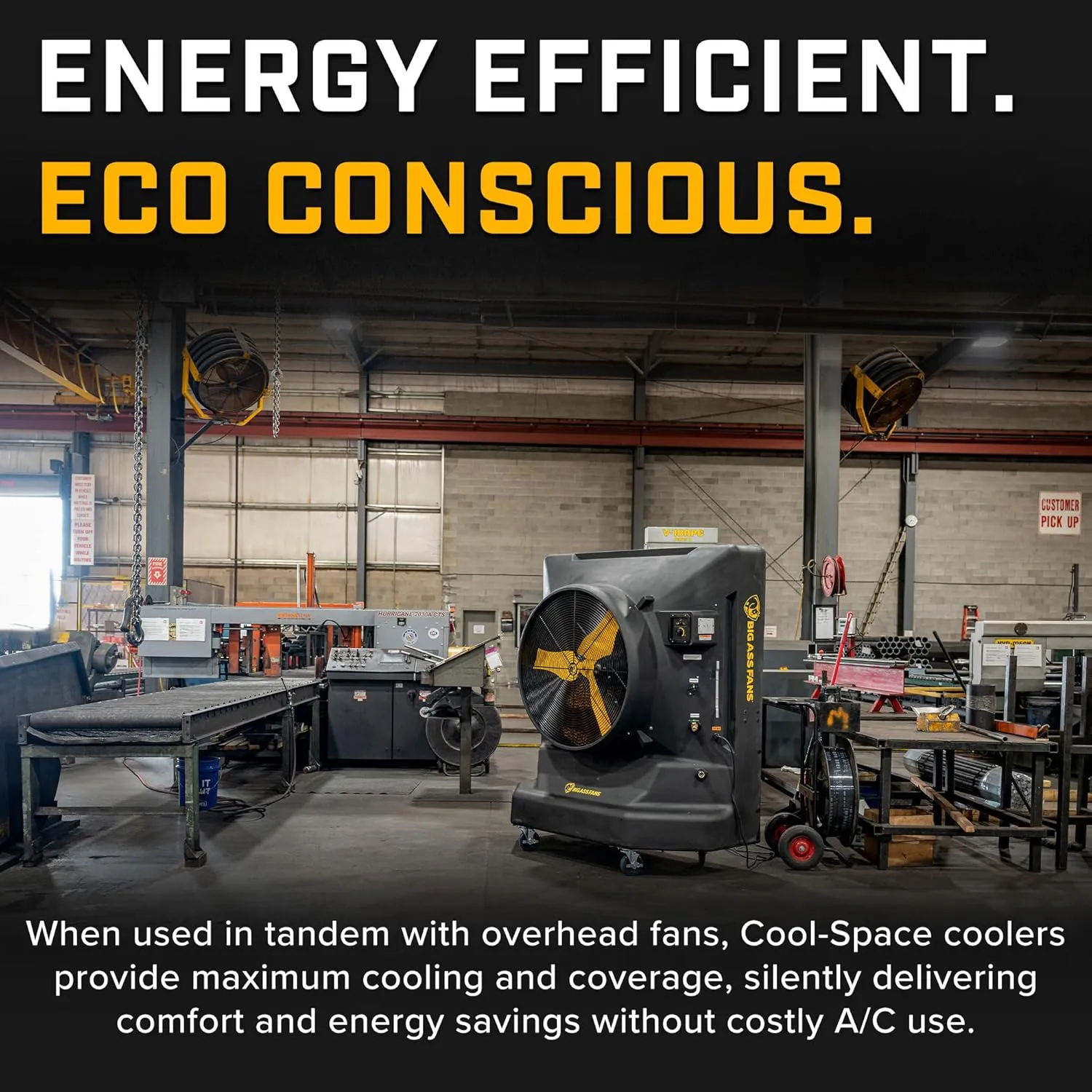

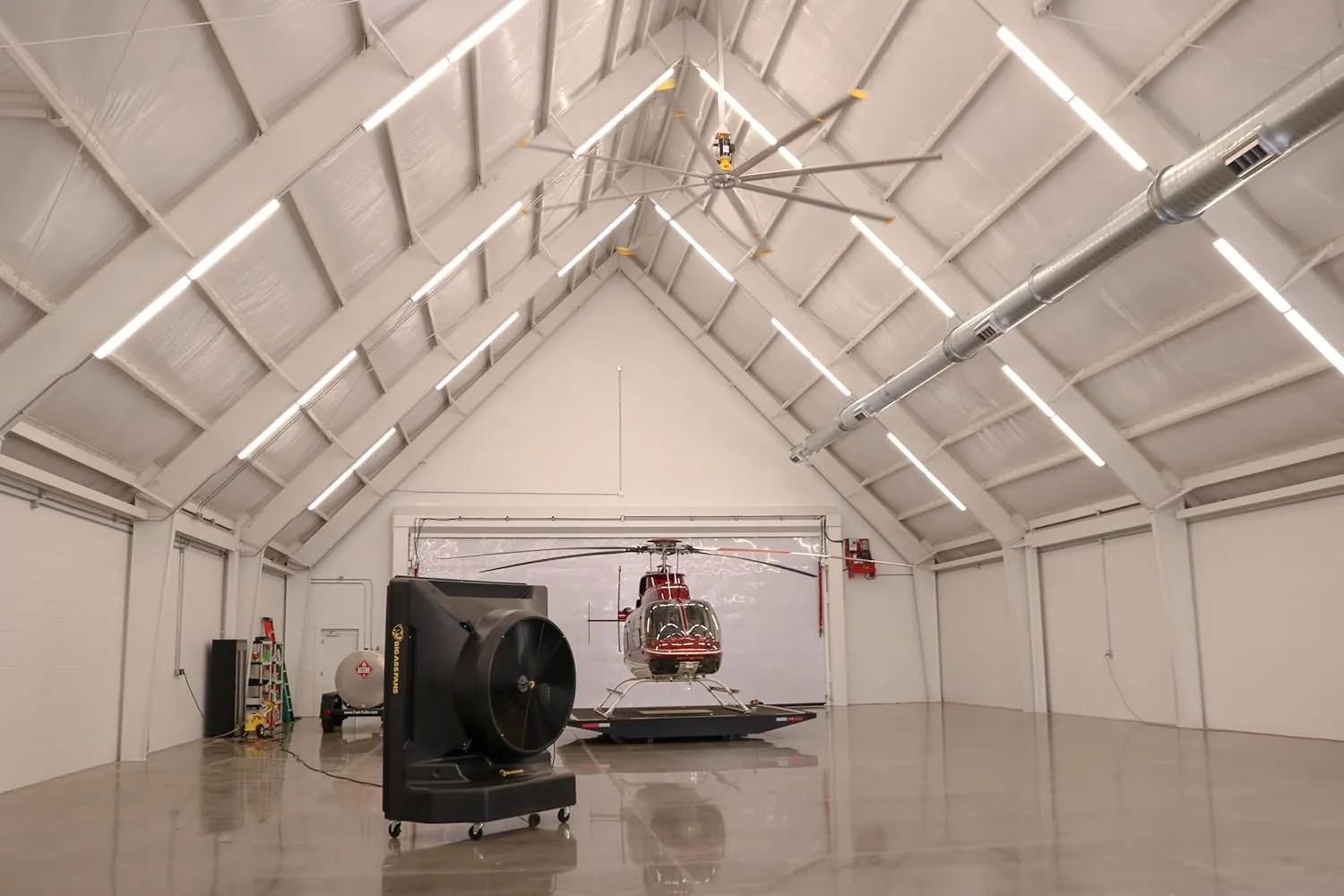

- Ultimate Cooling Combo: When used in tandem with overhead fans, Cool-Space coolers provide maximum cooling and coverage, silently delivering comfort and energy savings to your facility without costly A/C use.
- New Motor. New Blades. New Terrain: Want a swamp cooler with a little more swagger? Then the all-new Cool-Space® 400 might be the perfect evaporative cooler for you. Armed with a re-designed motor and new aerodynamic fan blades, Cool-Space 400 delivers efficient, nearly silent airflow for up to 10 hours in spaces up to 3600 square feet. Now available with an All-Terrain package, Cool-Space 400 is the most durable, powerful and portable swamp cooler on the planet!
Specifications:
| Brand | Big Ass Fans |
| Model | Cool-Space 400 |
| Model Number |
E-400-3601 (In 100-120 VAC Configuration) E-400-3602 (In 200-240 VAC Configuration) |
| Warranty | 5-Year Evaporative Cooler Warranty |
| E-400-3601 Input power and required breaker |
100–120 VAC, 60 Hz, 1Φ, 15 A |
| E-400-3602 Input power and required breaker | 200–240 VAC, 50/60 Hz, 1Φ, 10 A |
| Amperage |
E-400-3601: 8.75 A E-400-3602: 5.52 A |
| Drive | Variable Speed |
| Motor | 0.75 hp / (0.5 kW) |
| Weight | 220 lb / (99.8 kg) |

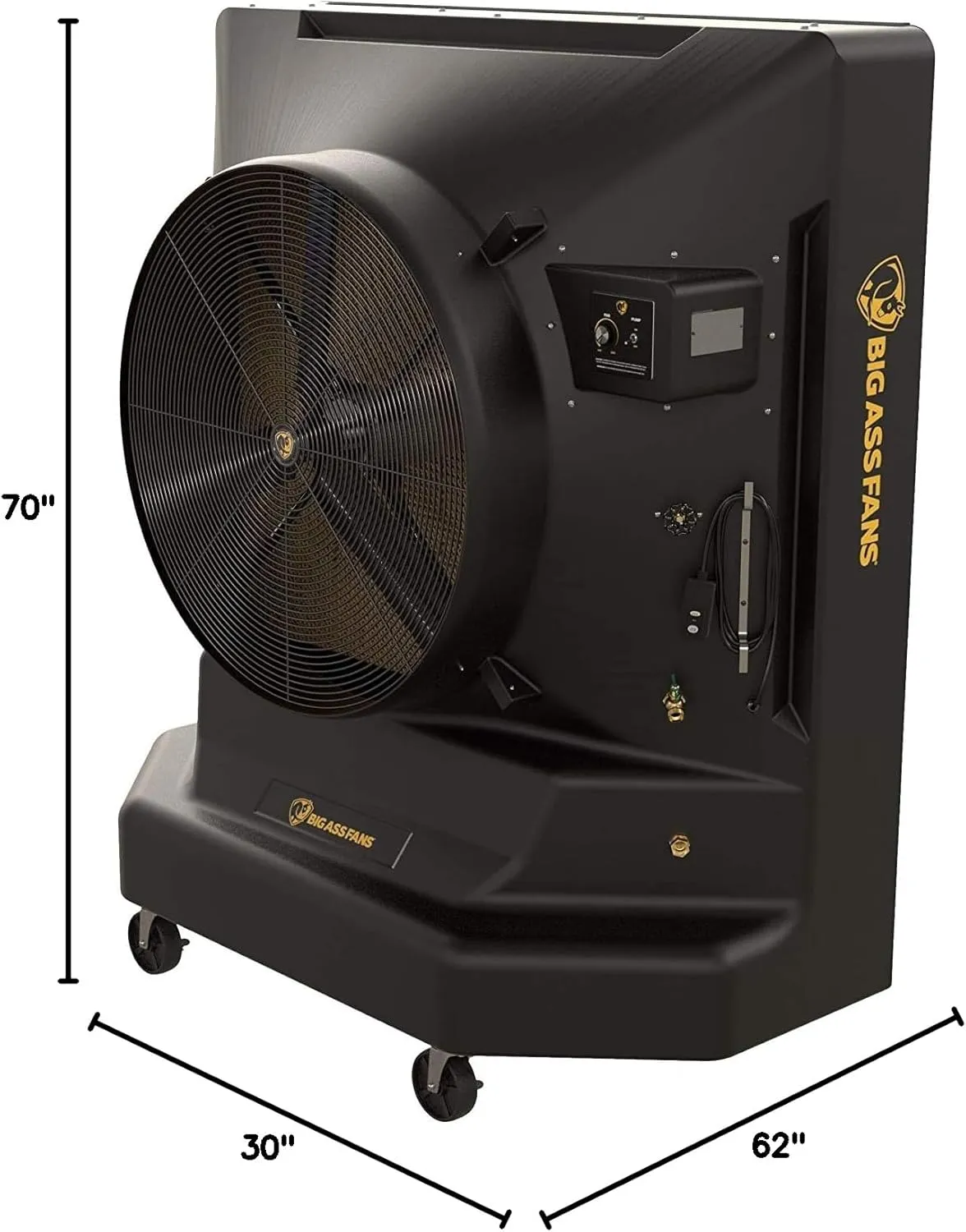

| Dimensions | 30"D x 62"W x 70"H |
| Water Capacity | 46 gal / (174 L) |
| Inlet Water Supply Pressure | 60 PSI Max |
| Environment | Well-ventilated indoor or outdoor space |
| Airflow and Coverage |
|
| Sound Level | 61 dBA |
| Operating Temperature | 0 to 104 °F (-18 to 40 °C) |
| Construction |
Housing:
Motor:
Power Supply:
Controls:
Water Supply:
Cooling Media:
Maintenance:
|
| Resources |
|
