| CFM | 110 |
|---|---|
| Color Finish | White |
| Duct Size | 6 |
| ENERGY STAR certified | Yes |
| Grille Length | 13 |
| Grille Width | 13.75 |

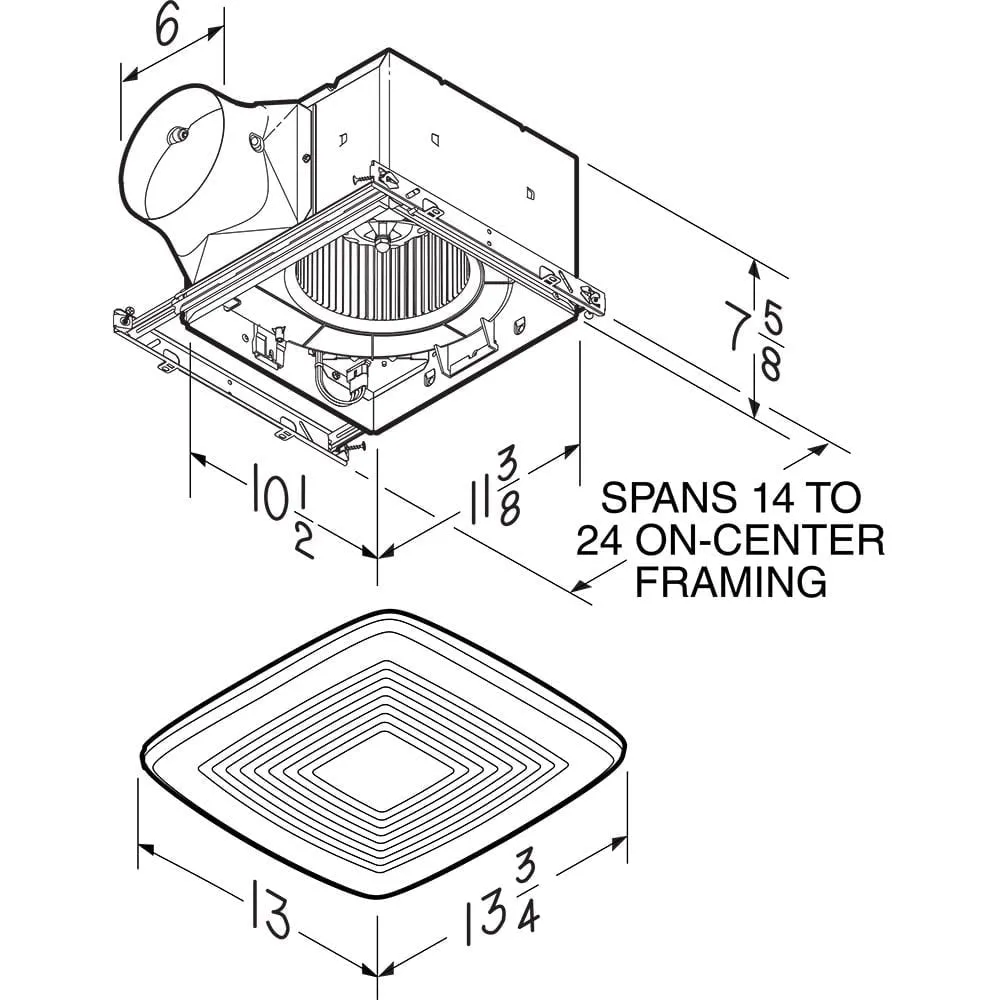

| Housing Dimensions | 10-1/2" x 11-3/8" x 7-5/8" |
| Sound Level (Sones) | 0.3 |
| UL Listed | Yes |
| Grille Finish | White |
| Humidity Sensing | No |
| Motion Sensing | No |
| Motor Engineered For Continuous Operation | Yes |
| Night Light | No |
| Radiation Damper Available | Yes |
| Room Side Installation | Yes |
| UL Listed for use over bathtubs or showers when connected to a GFCI circuit | Yes |
| Heater Wattage | 0 |
| Recommended Room Size (Sq Ft) | 105 |
| Rated Amps | 0.3 |
| Voltage | 120 |
| Can Be Used To Comply With Title 24 | Yes |
| Minimum Construction Space Required | 2" x 8" |
| Manufacturer Warranty | 3 Years |
| High Efficiency Luminaire | No |
newmisctag

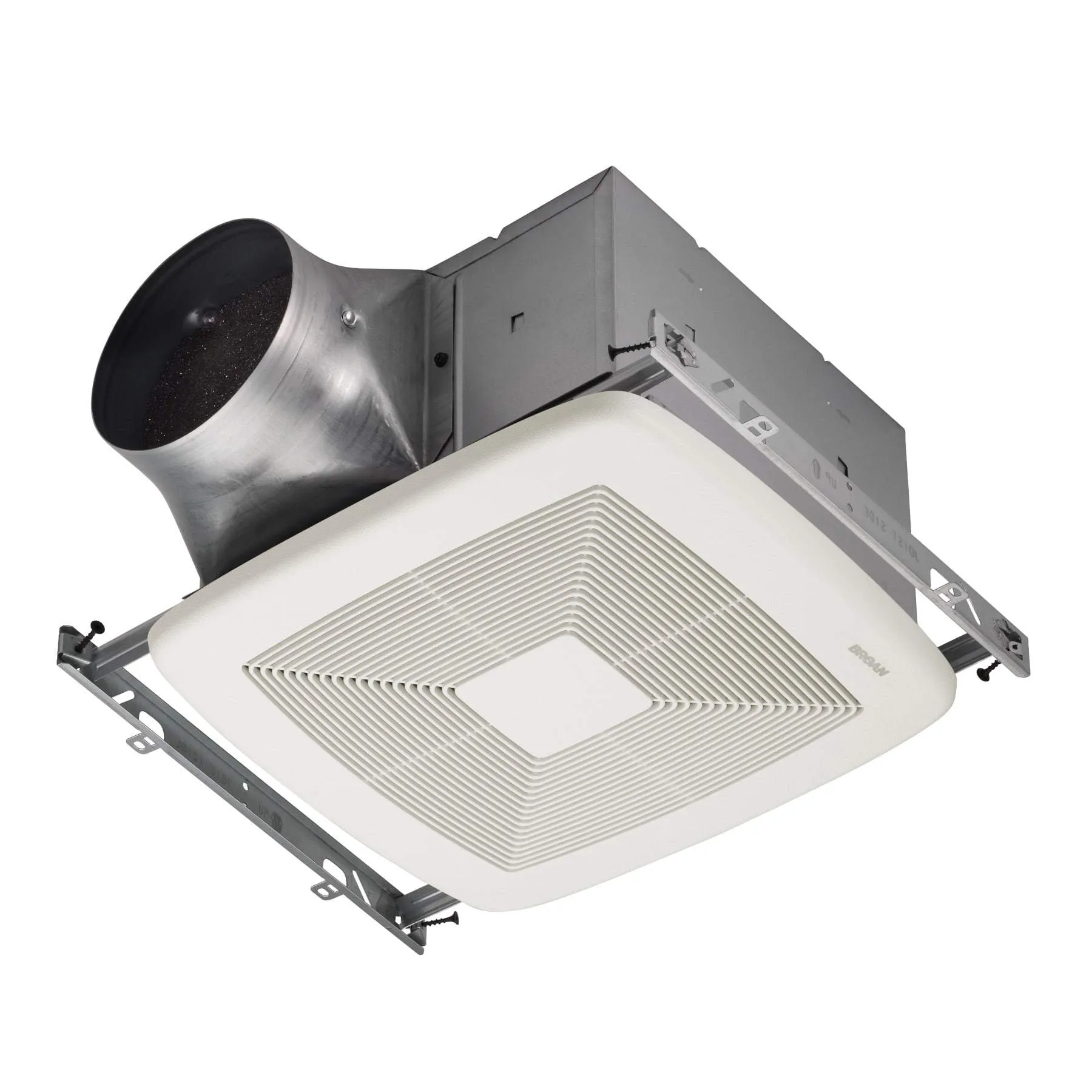

Broan's XB110 ULTRA GREEN Series 110 CFM Ceiling Bathroom Exhaust Fan delivers everything you wished for in a bath fan. Premium ventilation helps reduce airborne pollutants. It has extremely quiet operation, energy efficiency, consistent power and most impressively, the fastest, easiest, most universal installation available. These fans are ideal for spot ventilation in humid bathrooms. They also work well providing continuous ventilation to meet various building codes and Green Building standards around the United States.
ULTRAQuick: Installation technology makes use of an exclusive telescoping mounting system with pre-installed screws, snap-in blower, snap-in housing and an inside-out mounting duct connector. The result is 60% faster retrofit installations and up to 20% faster new construction jobs, saving you time and aggravation.
ULTRASilent: This fan is among the quietest on the market today. Enjoy the benefits of a peaceful bathroom setting with minimal ambient noise.
Mid CFM Capacity: This fan has an ample 110 CFM (cubic feet per minute) of clearing capacity designed for medium sized bathrooms. Controlling humidity in your bathroom extends the life of your decor and makes for a more hospitable space to prepare for the day ahead.
- 110 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
- <0.3 Sones for Ultra quiet performance, you might not notice it's on
- ULTRAQuick Installation Technology uses an exclusive telescoping mounting frame with pre-installed screws

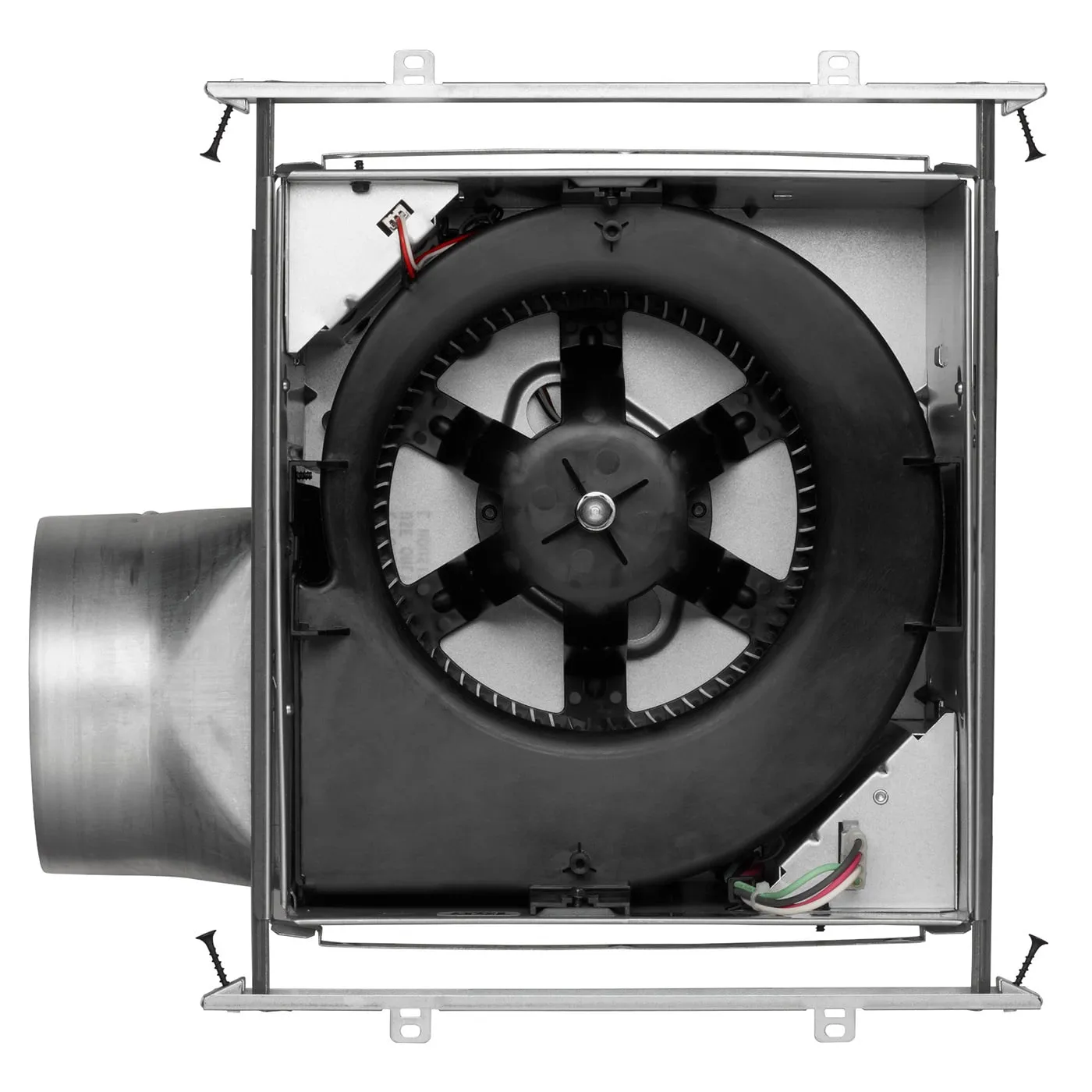

- Snap-in housing, snap-in blower, and an inside-out mounting duct connector for the fasters, easiest, most universal installation
- Mounting Frame fits any type of joist, I-Joist or truss construction for a "no guesswork" installation to make the work fast and easy
- ENERGY STAR Certified to meet or exceed federal guidelines for energy efficiency for year-round energy and money savings
- UL listed for use over bathtubs and showers when connected to a GFCI protected branch circuit (ceiling mount only) and for use in insulated ceilings (type IC)
- Powerful enough for rooms up to 100 sq. ft.

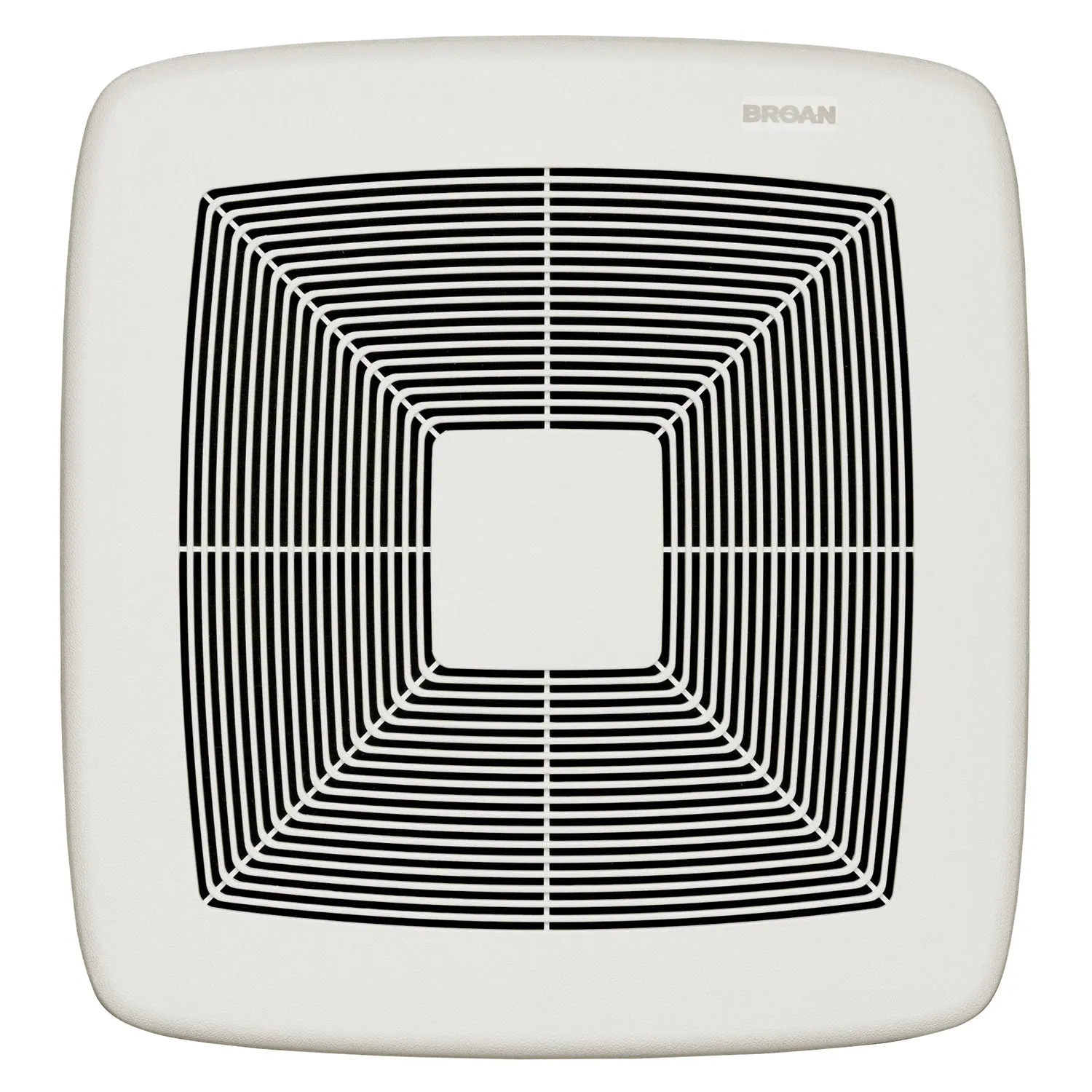

- Brighter white grilles blend in to match most common ceiling paint
- Corrosion resistant galvanized steel housing stands up to moisture
- Brushless DC electronically controlled digital motor is 3X more efficient than standard AC powered ventilation
