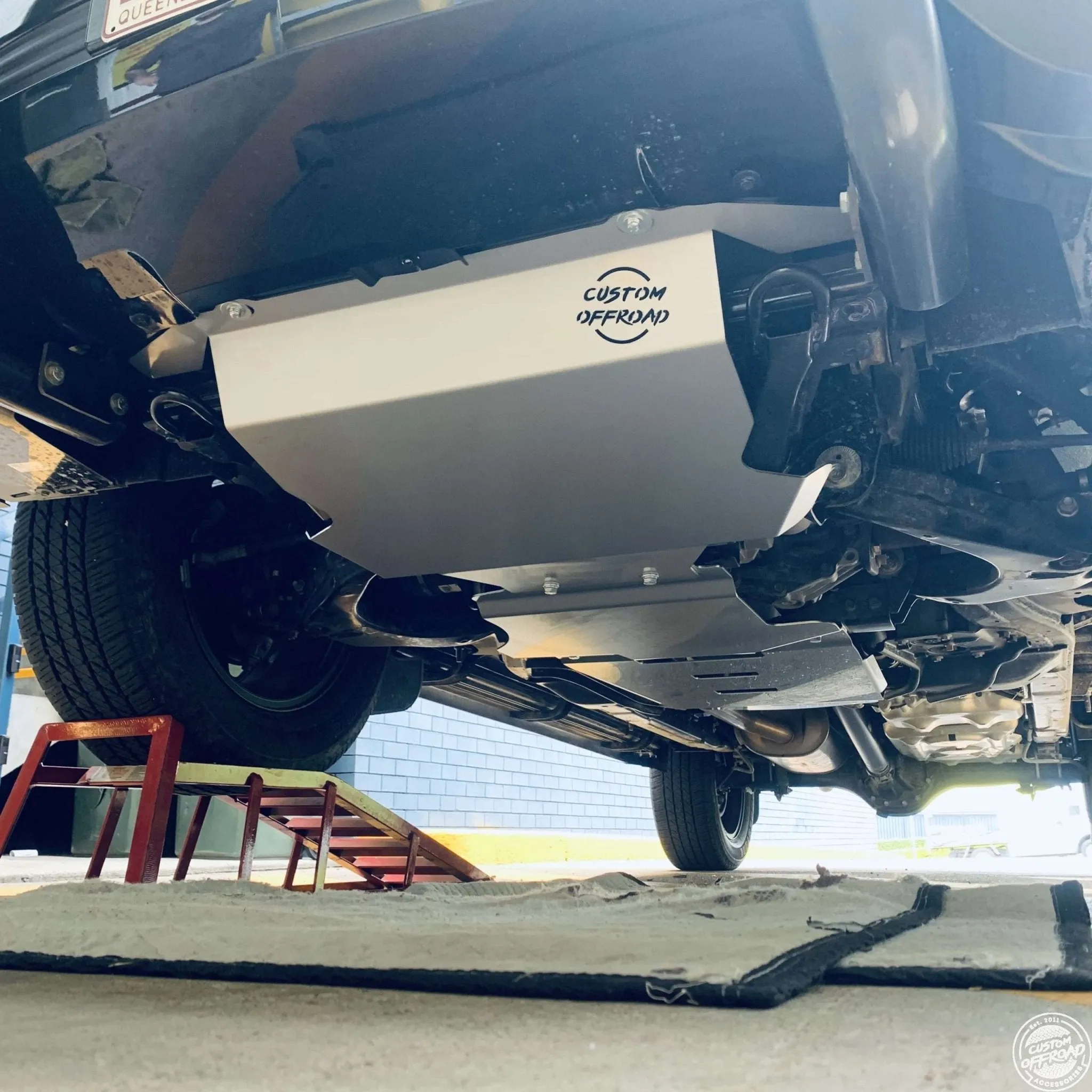

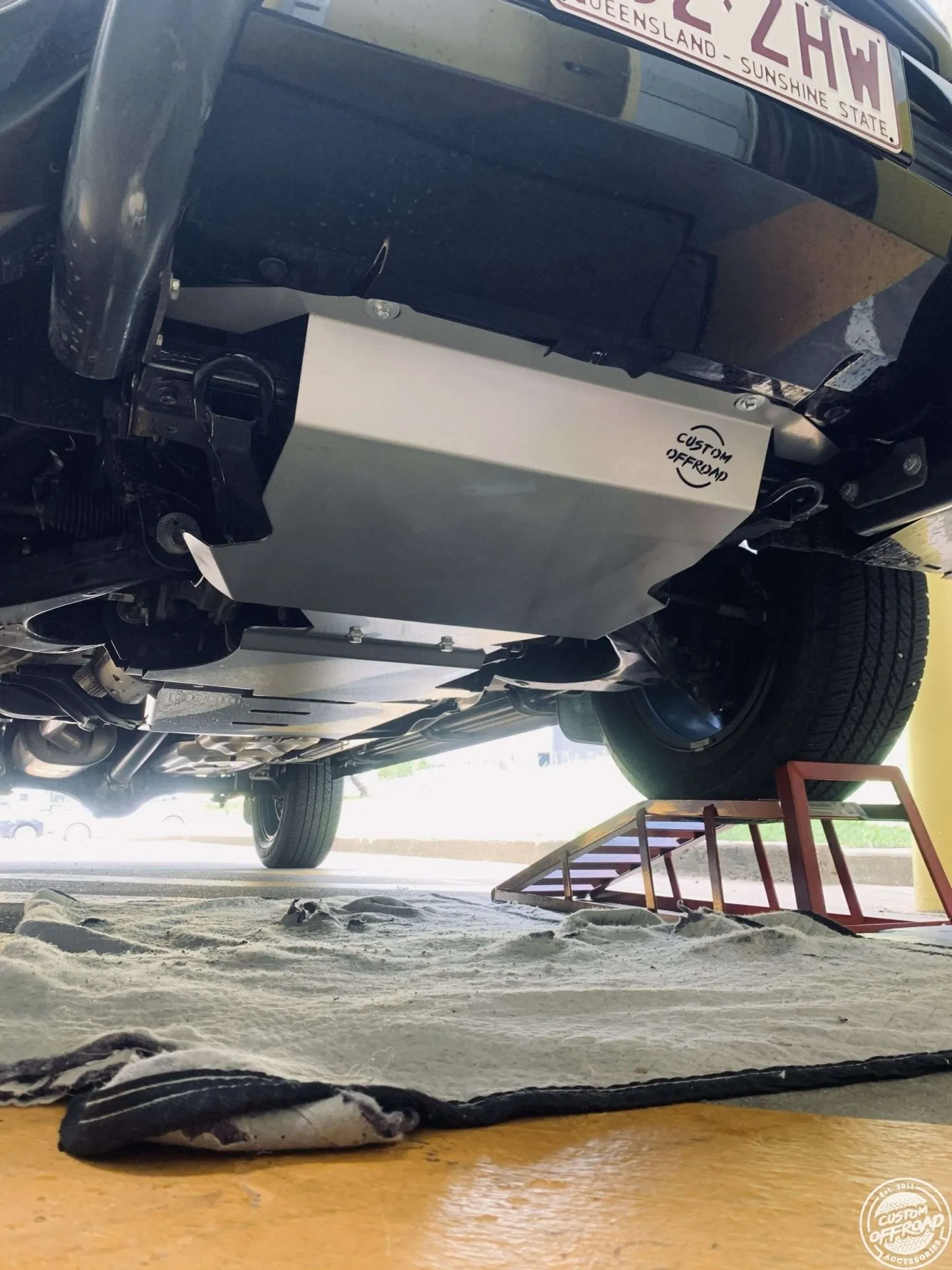

These tough and stylish bash plates are the ultimate in 4x4 underbody protection.  Made from 3mm stainless steel, these bash plates will protect your vehicle underbody from the ultimate off-road adventures.

Bash Plates:

• 3mm stainless steel

• Fits with all bull bars as long as the standard plate fits.
• Replace the 1.5mm standard plastic/tin plates.
• Slim design for maximum clearance, no modifications
• Diff Drop options available.

Suits: Holden

Model: Colorado

Series: RG  Fits the 2016, 2017, 2018, 2019 MY17,18,19, 20, 21 models

Year Range: Mid 2016 -2021

Warning, does not fit the models that came out with a steel silver plate, this was designed off the plastic front plate. Please contact us via chat if you are unsure.

Let us know if you have Arb bar, by leaving a note in the checkout when you purchase.

The package comes ready to fit as is for a direct bolt-in installation. All parts are supplied with instructions on how to fit your new bash plates. No cutting or welding needed.

Coloured paint additional cost.

NOTE: Please read and understand the Installation Instructions before beginning the installation process. Retain the installation instructions that came with the kit for future reference. Where possible it is recommended this item is installed by a Qualified Person. Please contact us if you require installation.

Many of the plates as the name suggests are custom-made for the vehicle makes and as such despatch can take between 4-10 days depending on the products purchased.

Our range of underbody protection include 2 popular Australian made brands  and

Want to know more about Bash Plates? Then checkout our blog post .

Weights

3mm 3 piece raw mild steel - 24kgs

3mm 3 piece stainless steel - 24kgs

4mm 3 piece stainless steel - 32kgs

Fitting

With your purchase of the Stainless Steel plates, make sure the plates fit before removing the protective film. If your plates don’t fit or have any other problems, the protective film needs to stay in tacked in order to receive a replacement set or a refund. We have included a variety of bolts, and across the year ranges the bolt holes remained the same but the bolts may have changed. The bolt threads in the chassis are 1.25 fine pitch thread. The 30mm M10’s supplied with nut plates are a standard thread not to be used in the chassis. This will only be valid with three piece sets, not for two piece sets.

Front and Sump Plates

Start with the sump plate. This will go directly under the motor with the forks to the front. The back of the plate will share the bolts with the front of the transmission plate. When installing the front plate, the front holes will use the two spaces to fill the void in between the chassis and the plate. To find the front holes for the front of the plate, ensure that the back holes are lined up with the back of the plate.

Transmission Plate

Nut plate needs to be inserted inside the transfer cross member to give a thread for the transmission. The transmission plate will share the bolts of the sump plate and will use the 2x 30mm bolts to connect plate to the nut plates.

Specifications

Check out these .
