Product Details
＋

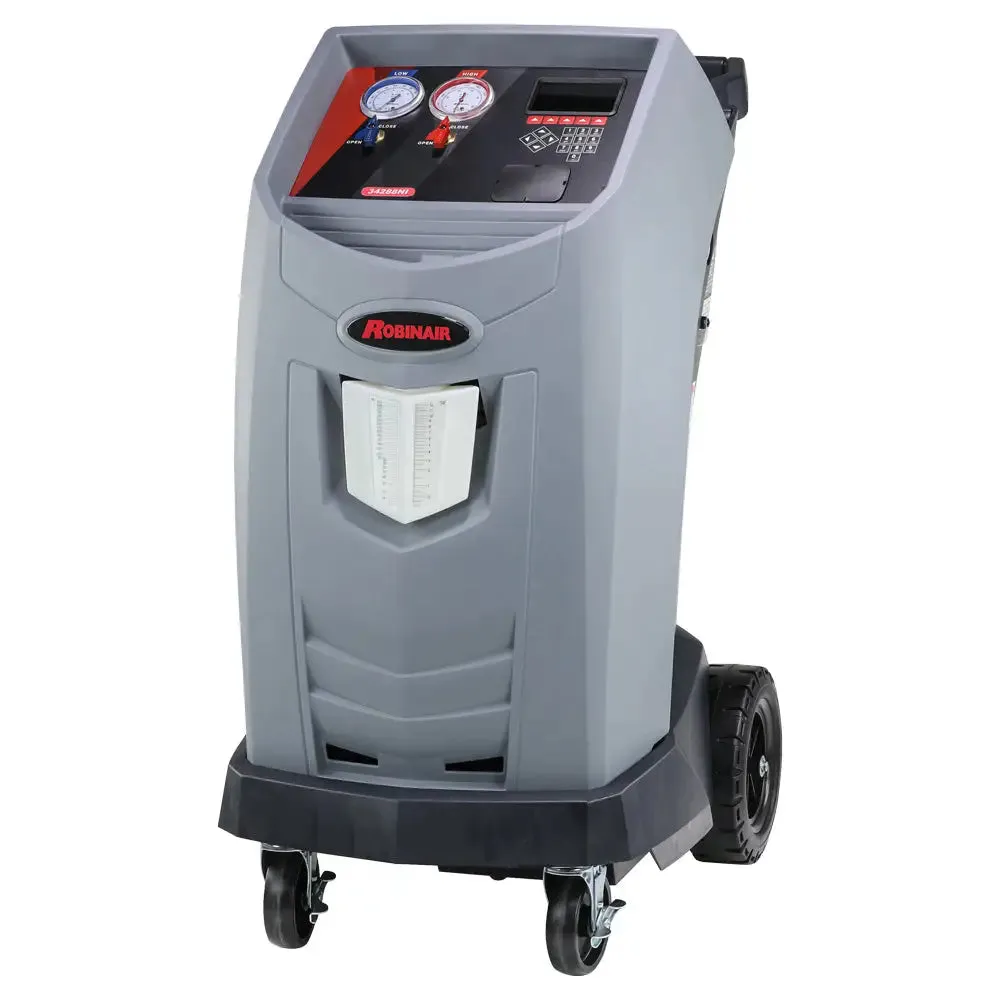

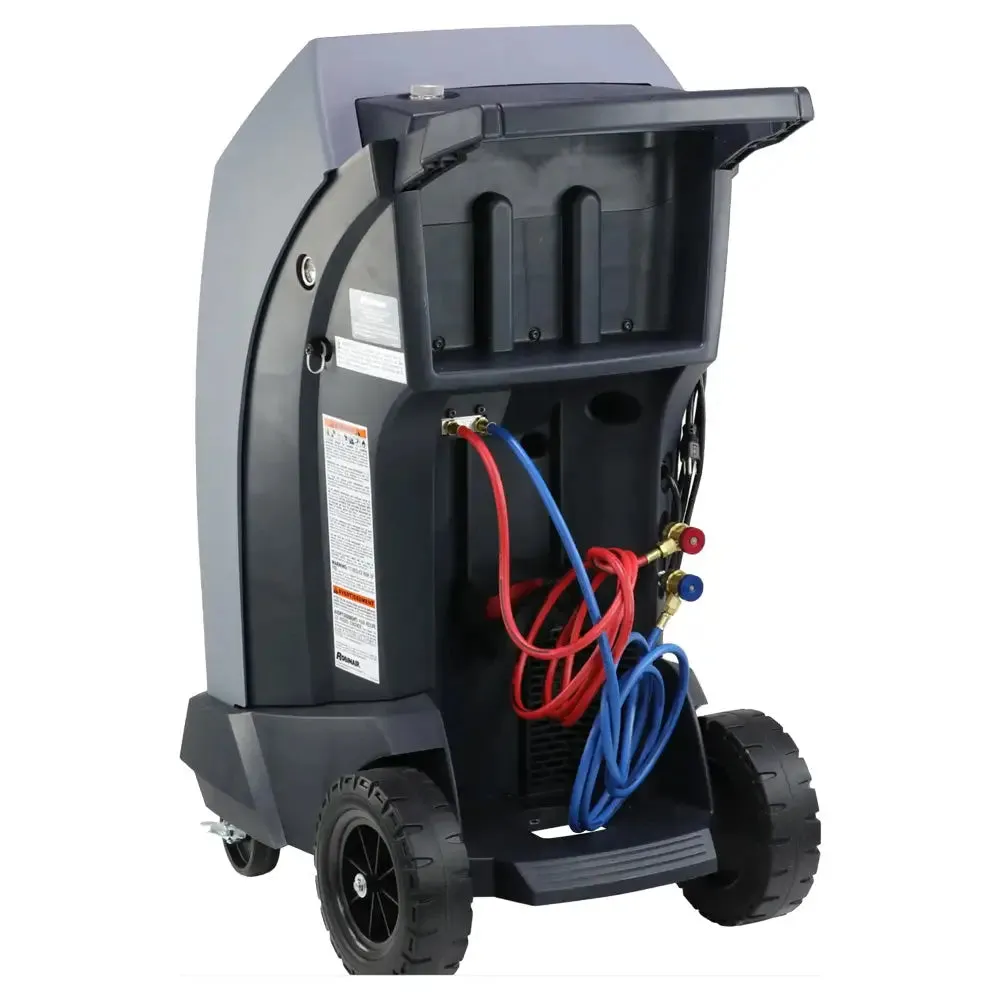

The 34288NI combines simple operation with superior accuracy. It recovers, recycles, evacuates, and recharges R-134A mobile A/C systems quickly and accurately. The product outperforms the most current SAE J-2788 standards for accuracy and efficiency, recovering more than 95% of the refrigerant in a vehicle's A/C system and charging to better than /- 1/2 oz of the programmed charge amount.
Keep your machine operating with 34724 replacement filters or 13172 maintenance kits.
*Note: Compatible with accessory printer 30038.
Specs:
Dimensions: 107 cm x 61 cm x 76 cmDisplay: 5 × 9 cm (4.3-in. diag) graphical LCD
Filter Capacity: 68 kg (150 lb)
Humidity: 32.2°C (90°F), 80% RH non-condensing
Gauges: Ø 80 mm (3.15 in.)
Maximum Pressure: 27.3 bar (396 PSI)
Noise: <70 dB(A)
Operating Voltage: 115V, 60 Hz
Oil Drain Bottle Capacity: 355 ml (12 oz)
Operating Temperature: 10°C to 50°C (50°F to 122°F)
Vacuum Pump: 1.5 CFM (42 L/m) @ 60 Hz
Service Hoses: 2.75 m (9 ft) / SAE J2196
Internal cylinder: 30 lb DOT (13.6 kg); 22 lb (10 kg) capacity
Weight: 73 kg (161 lb)
Model Number: 34288NI
UPC: 637335045019
Warranty: One Year
Includes:
34288NI ACS machineOperating Instructions
Scale calibration check weight
Service Center listing sheet
Vacuum pump oil with global complaint SDS sheet
Compressor oil with global compliant SDS sheet
EPA registration sheet/envelope
MACS 609 certification info sheet
Mobile Vehicle A/C equipment certification form
